Finally, my robot worked well as shown in this video.
PCBWay thankfully supports this project.
Quality
I ordered PCB Assembly service since I don’t have an equipment to solder components.

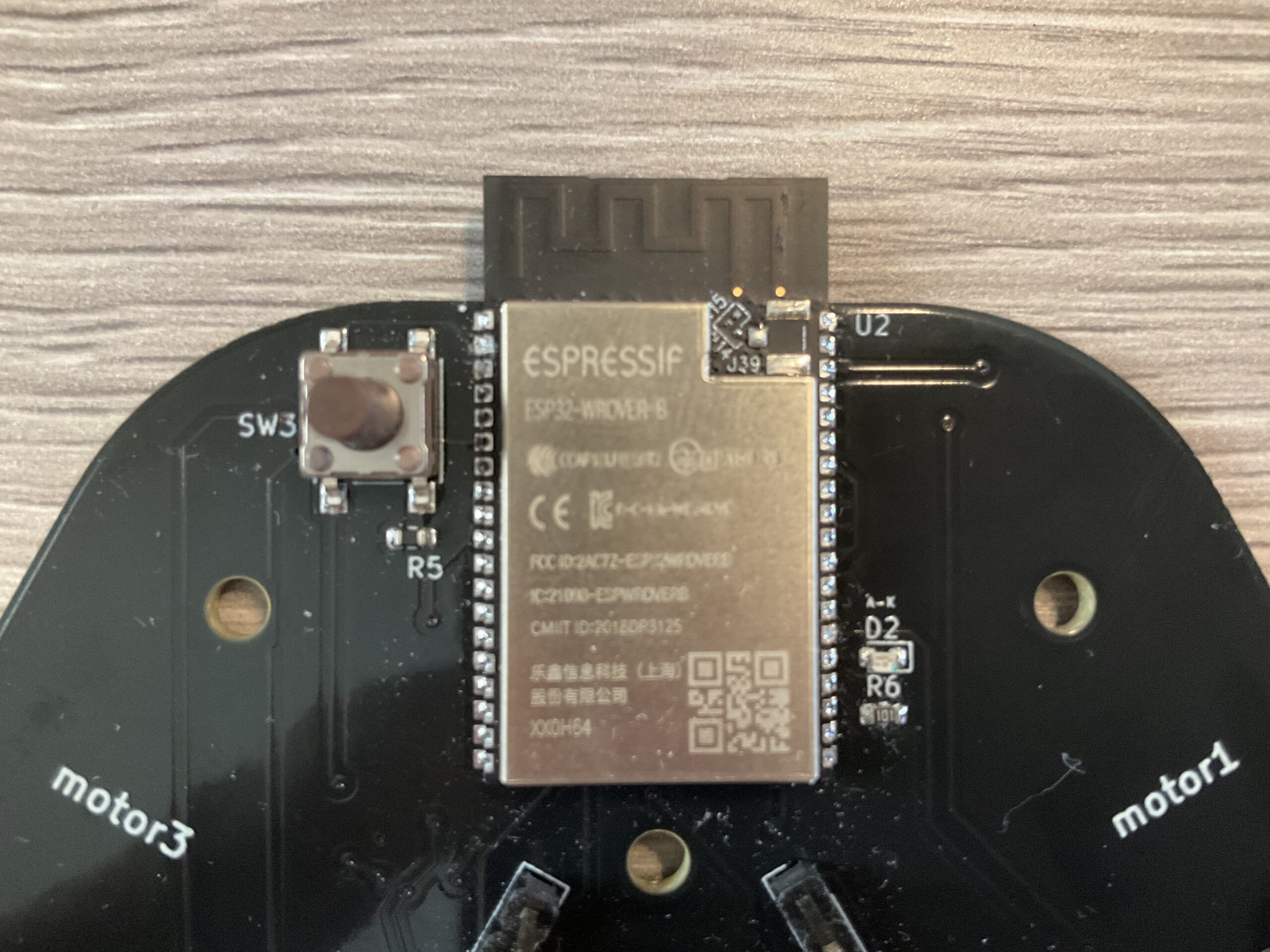

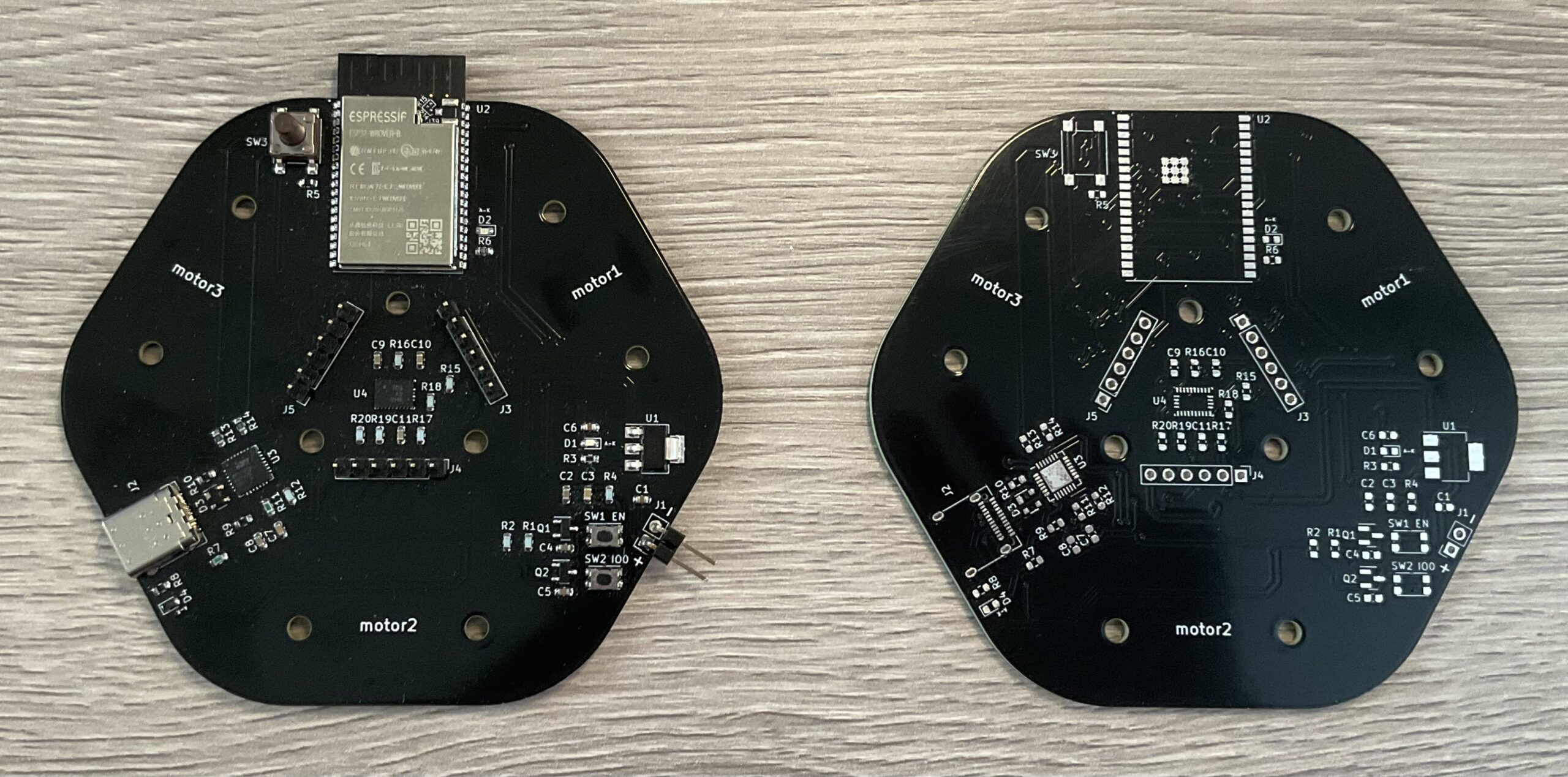

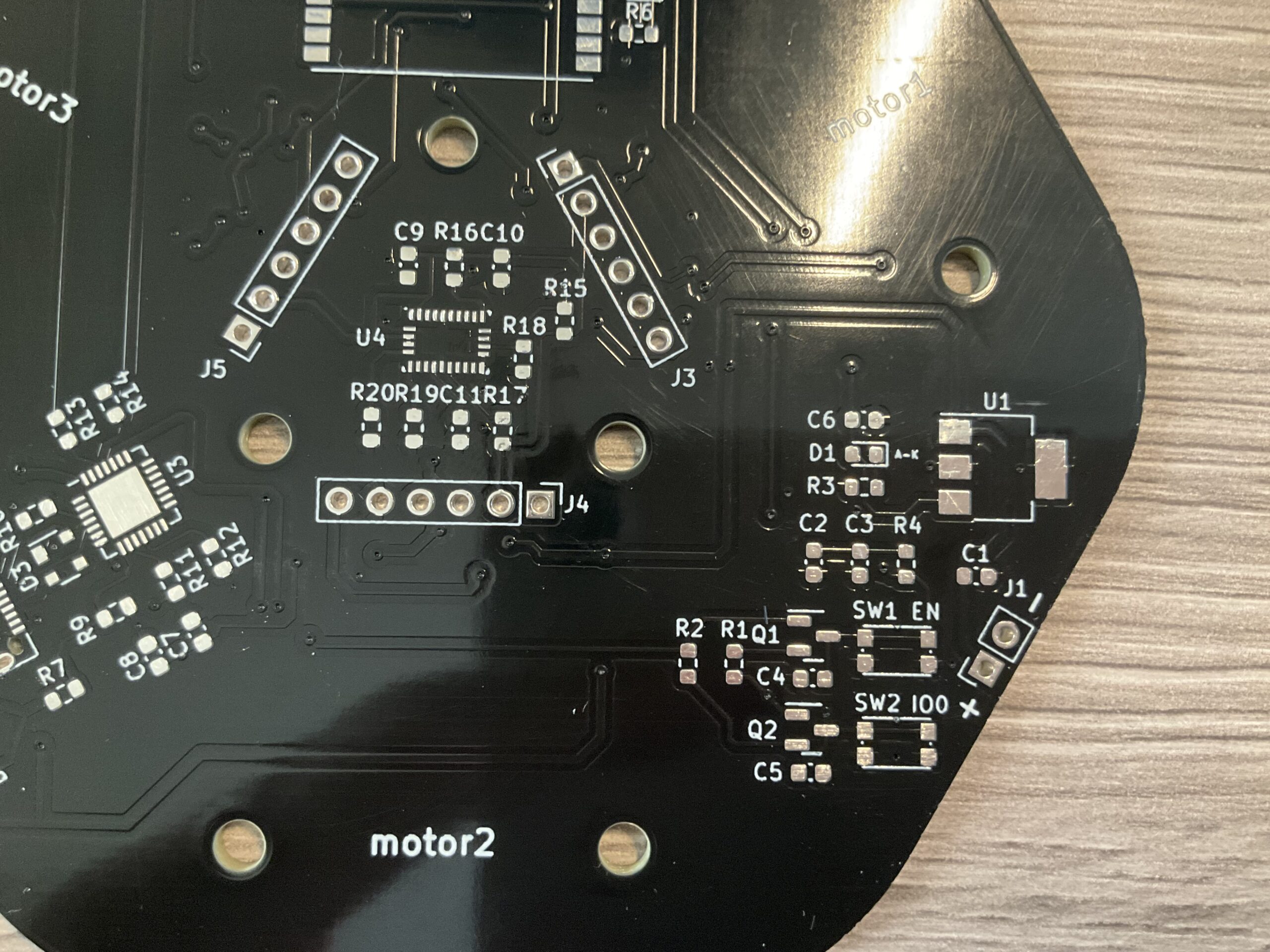

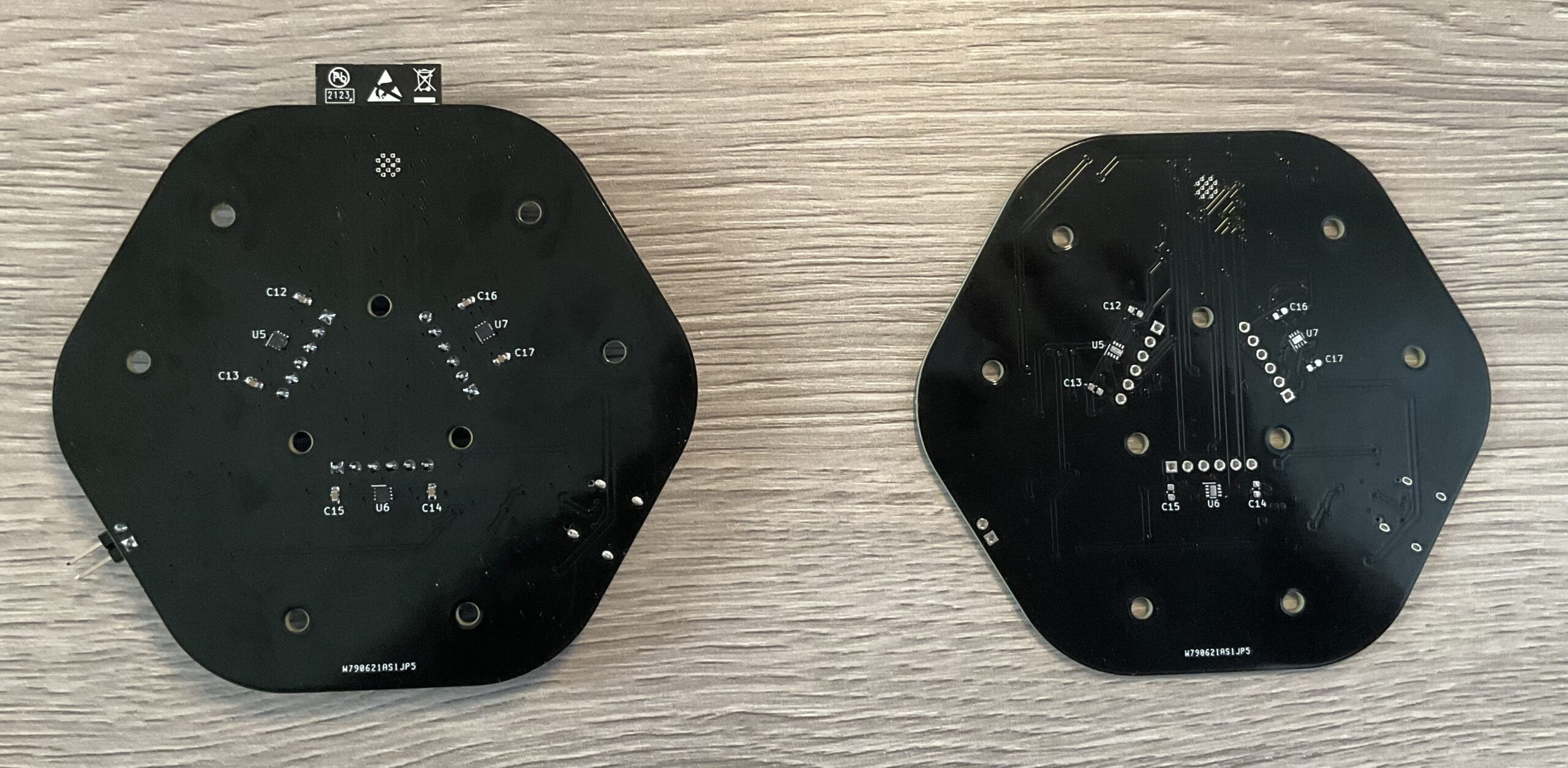

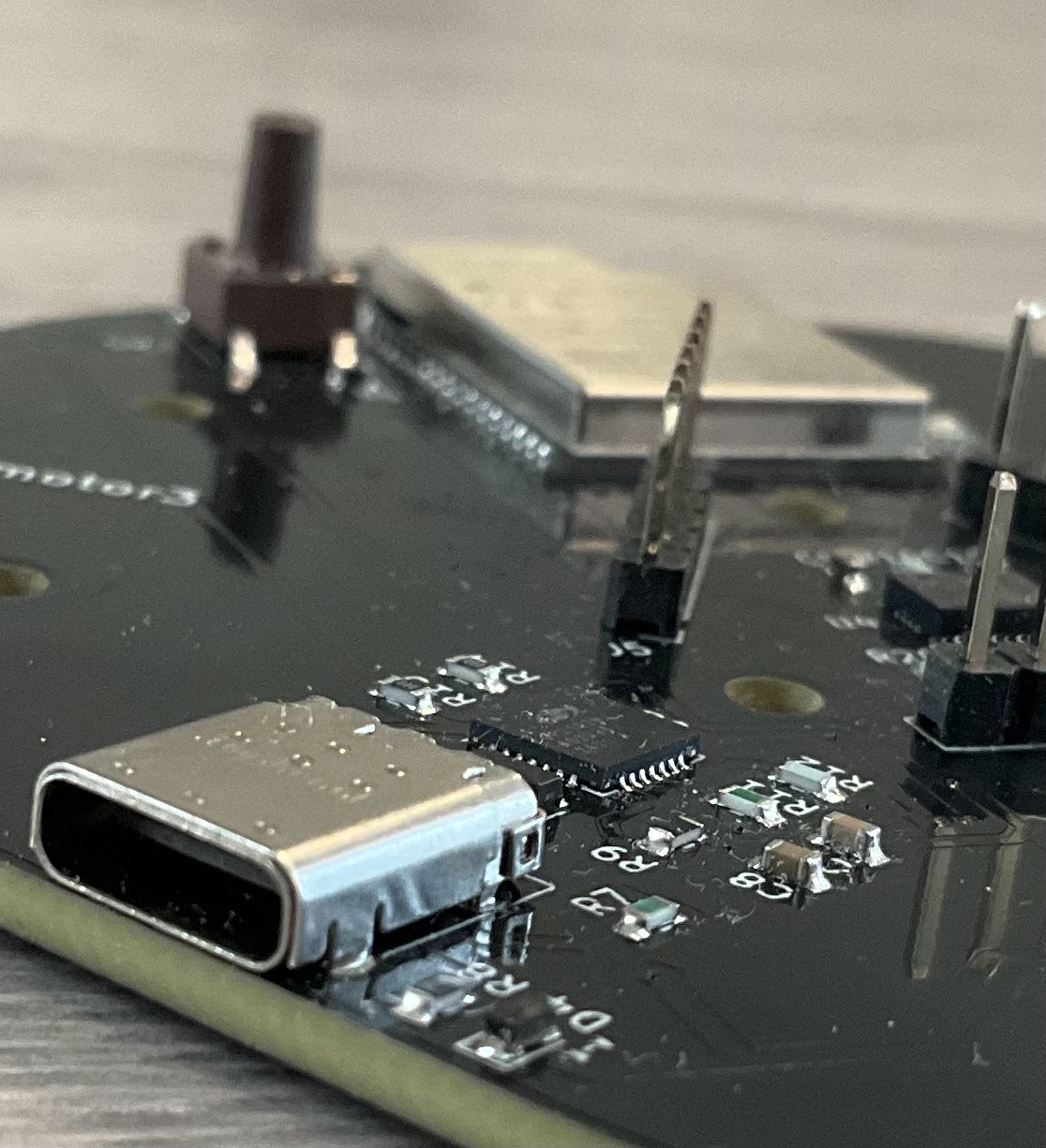

The followings are top and bottom view of the assembled circuit and the one before assembled.
My impression on the printed board is as follows.

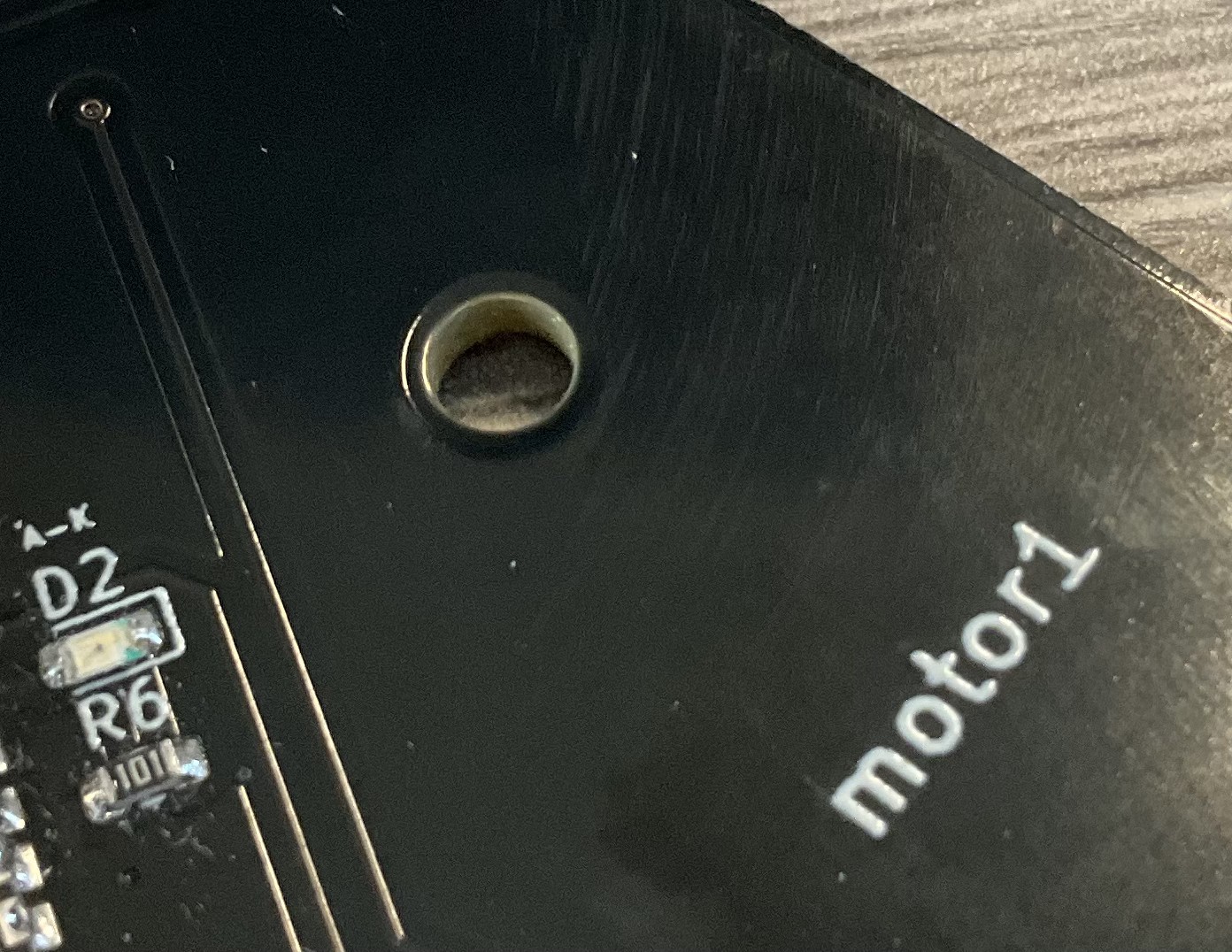

- The holes are neatly milled.
- The pads are etched nicely (Even if I scratched a bit with my nails, it is not damaged).
- All the parts are placed in the correct places.
- The pin headers are soldered straight. (It took fairly long time for me to solder them straight previously when I do this process manually.)

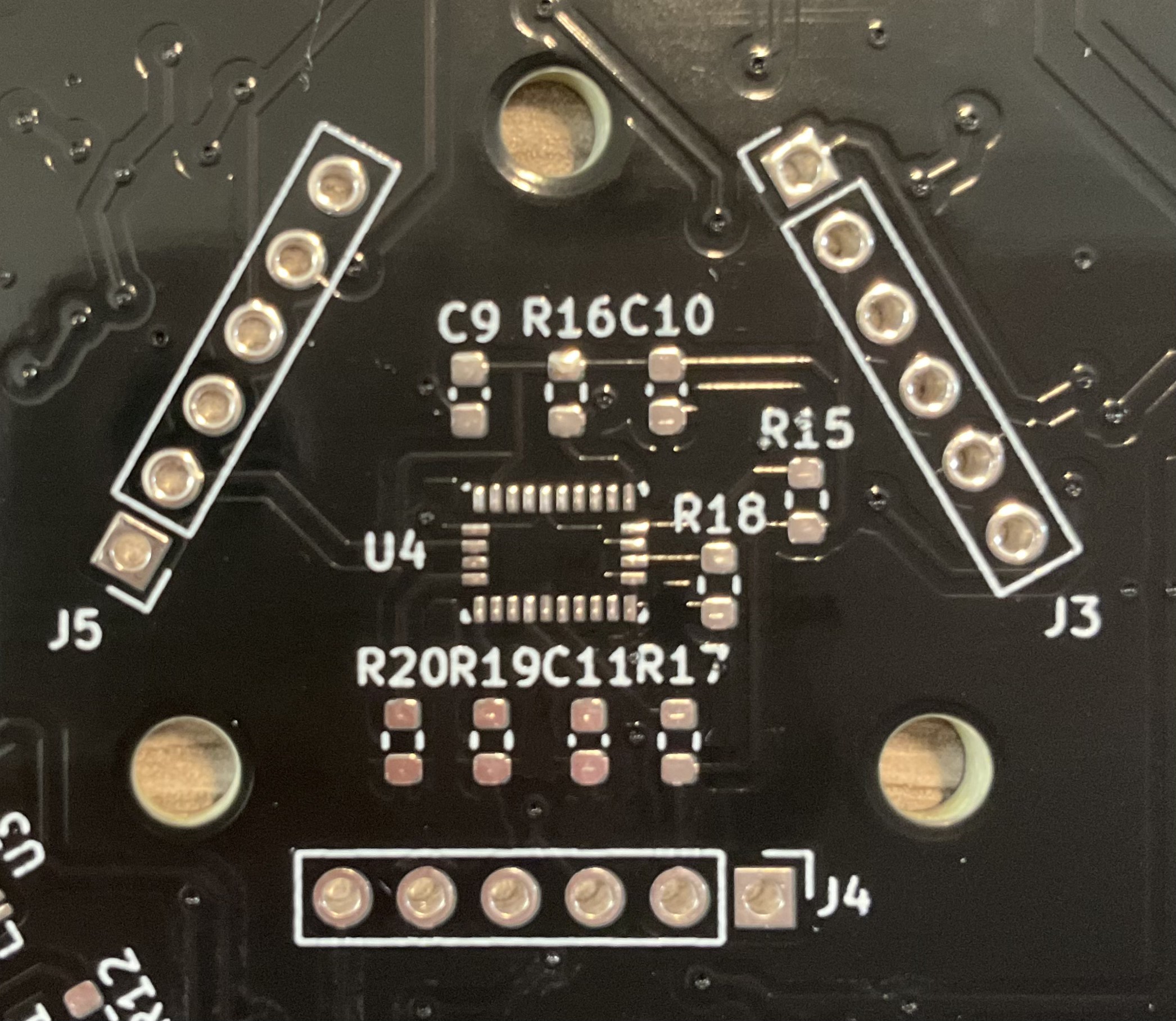

- The silkscreens’ characters are easy to read (One of them is covered by a via but this is my design problem).

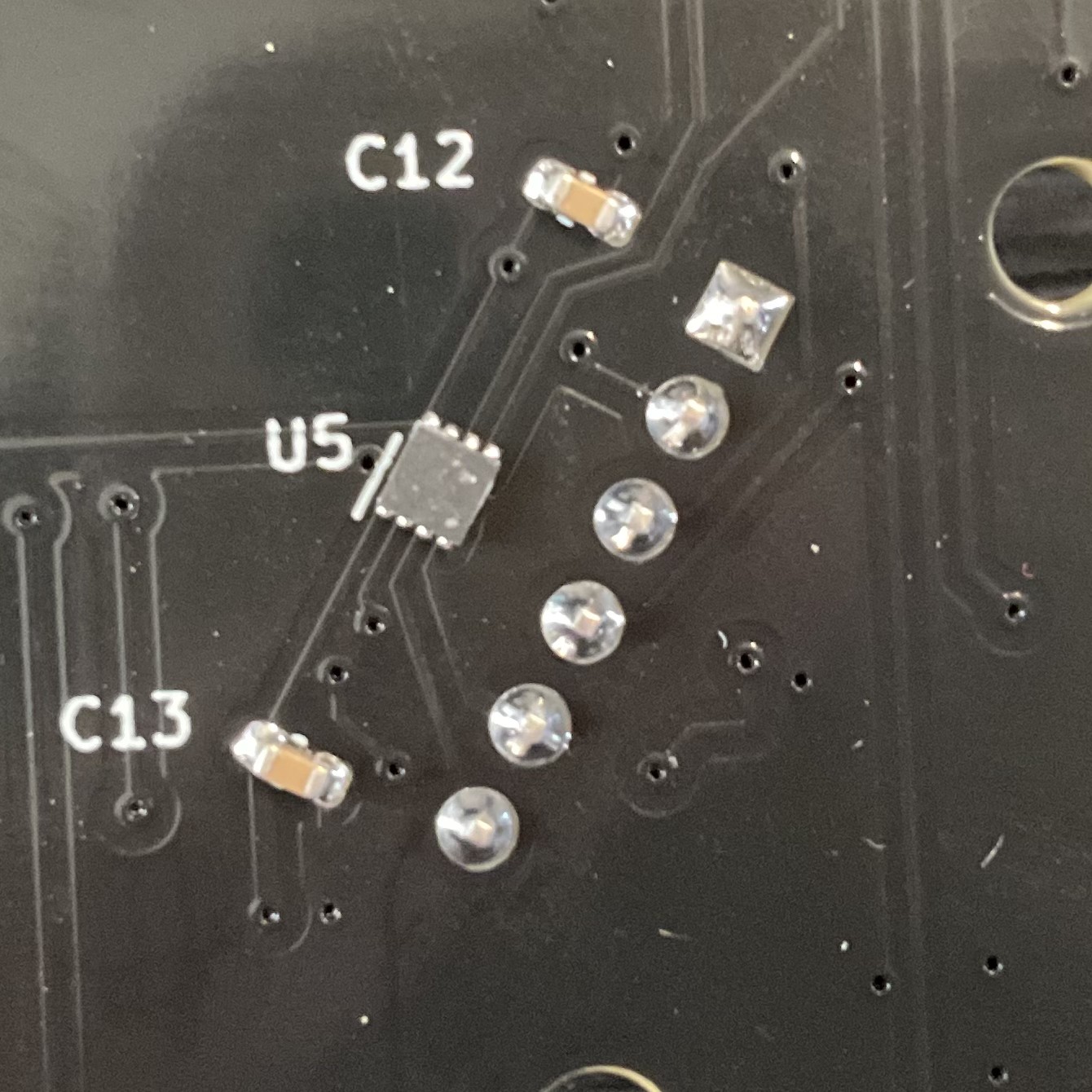

- Soldering quality is also nice.
- There is no issue in testing my PCB, which means that there is no soldering or placement problem.

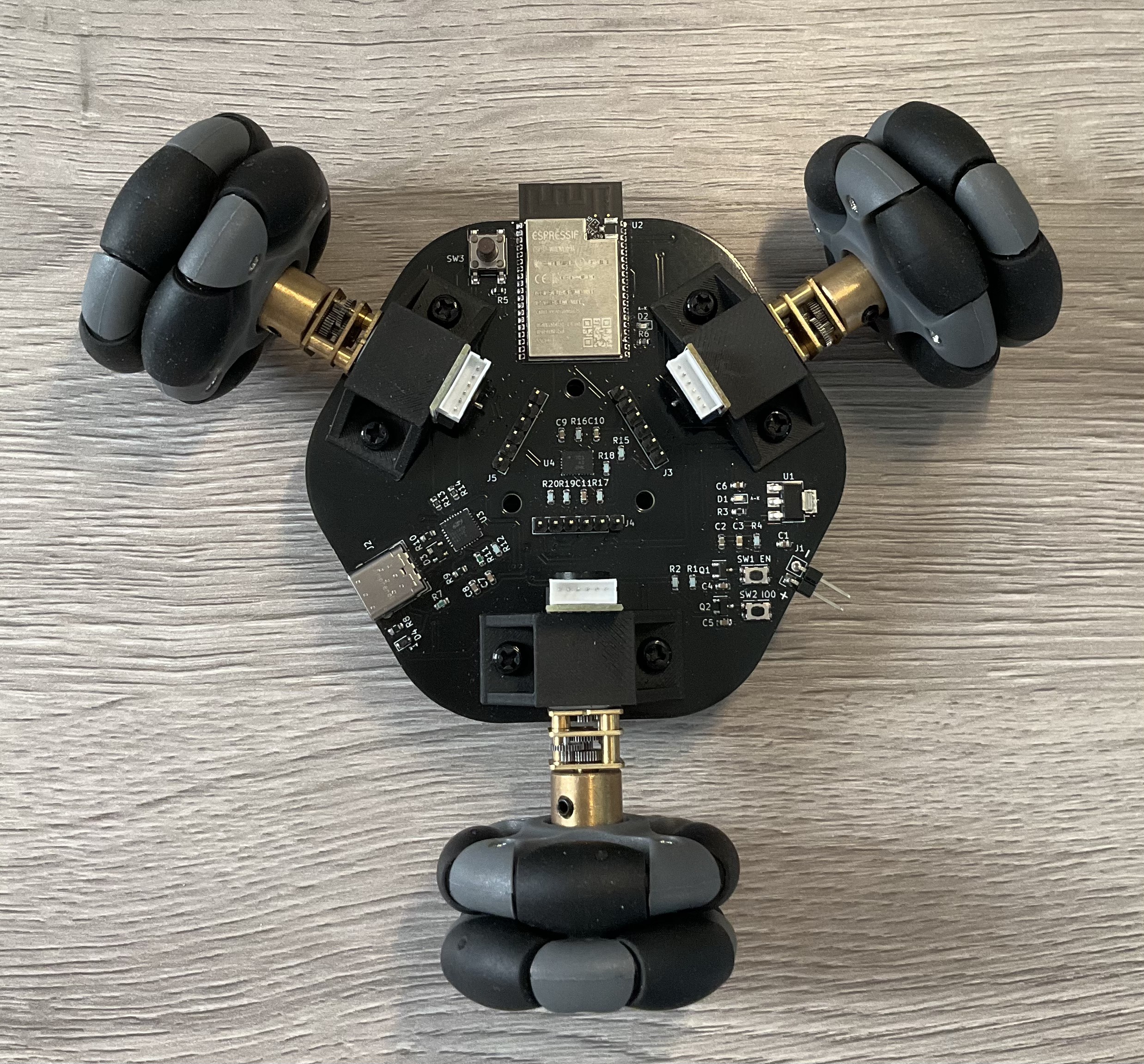

As shown in this article, the circuit board can be used as an omni-wheel robot after full assembly.
Price

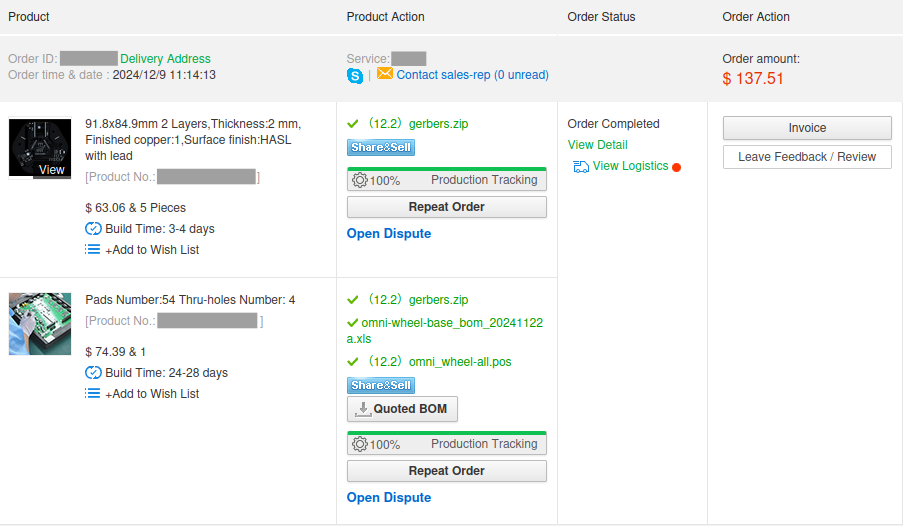

The fee for the order was $137.51.
Additionally, the shipping fee was ¥2,780 (≒ $18.3).
In total, the fee was $155.81.
Delivery
The package is delivered and there was some cushioning material to protect the boards.
| Date | Event |
| Dec 2nd | Placed an order |
| Dec 7th | Ready for payment (the review is finished) |
| Dec 9th | Conduct payment |
| Dec 26th | PCBWay shipped the PCB |
| Dec 27th | Received the PCB |
The board reached within 25 days. It is pretty early and amazing.
Design review from PCBWay
The followings are reviews from PCBWay. Thanks to the inquiries, my PCB worked nicely.

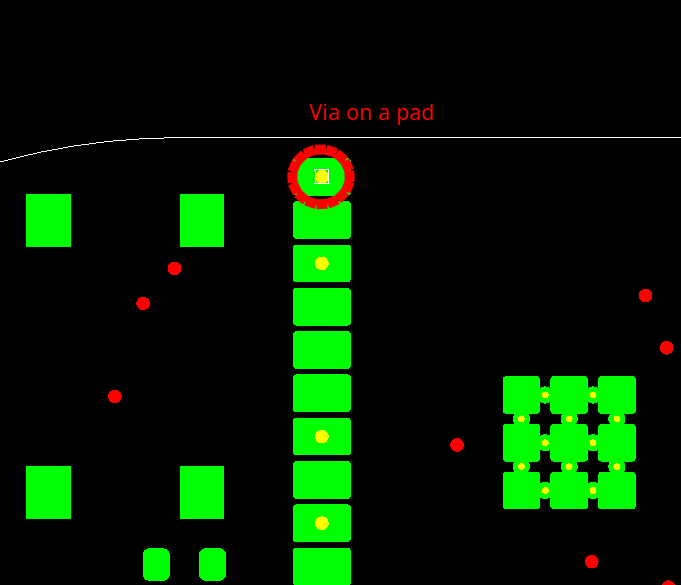

Q. If vias are included in pads, it is recommended to make vias filled with resin but it increases the price about $125. Do you accept the filling?
A. No. In order to avoid price increase, I move vias out of pads (redesign was done).

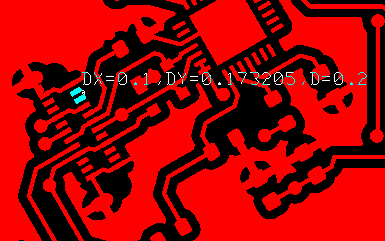

Q. The distance between the IC pads < 0.22mm for 1oz need. Which option do you prefer?
1.accept No solder mask bridge
2.choose Green color solder mask,so the distance can be min 0.2mm
3.widen the IC pads distance to 0.22mm
A. I accept 1 (No solder mask bridge).
Reference
There are some other articles reviewing PCBWay.
Summary
I am satisfied the circuit board produced by PCBWay in terms of the quality and delivery speed. I recommend PCBWay as an outstanding PCB manufacturer.
