I have modified the design of the motor bracket from this article. Many thanks to my colleague for his suggestion.
The changes are…
- Add reinforcement material on the side
- Thicken the motor bracket since 1mm is too fragile
- Lower the height of the bracket
- The hole should be as large as 3.2mm instead of 3.1mm for M3 screws to pass through

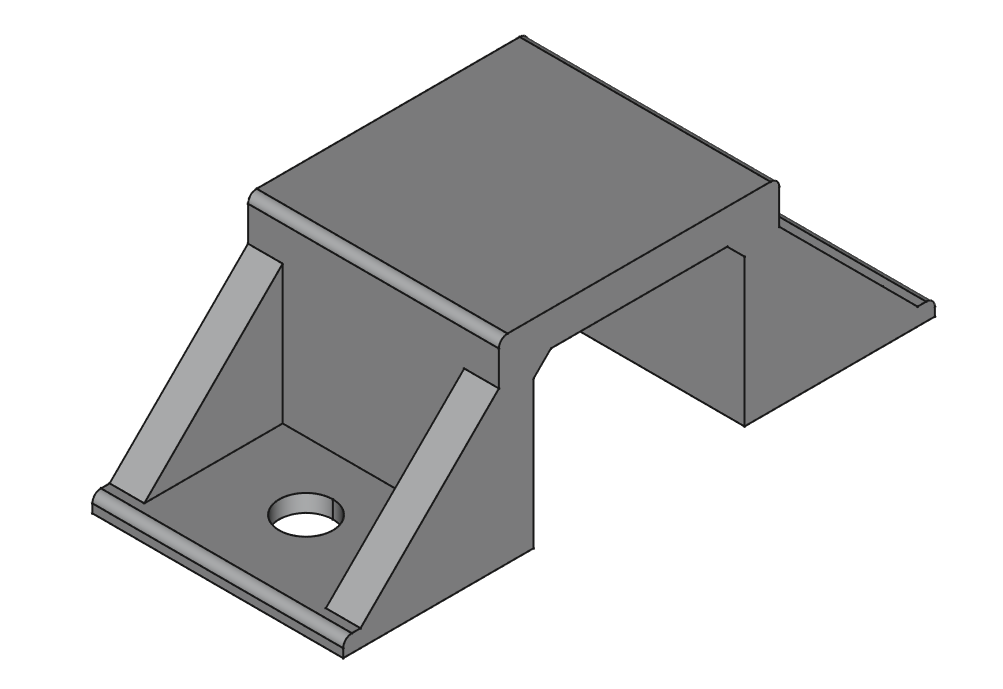

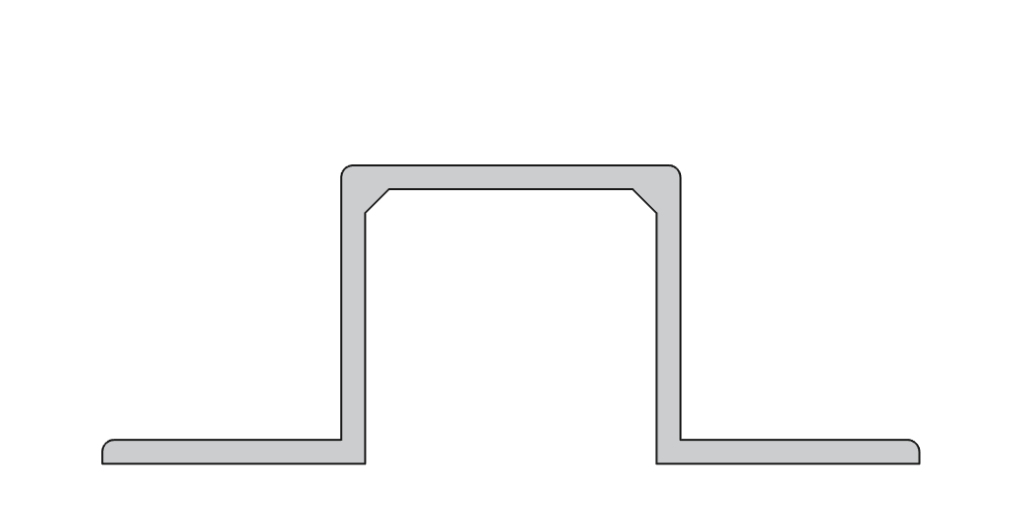

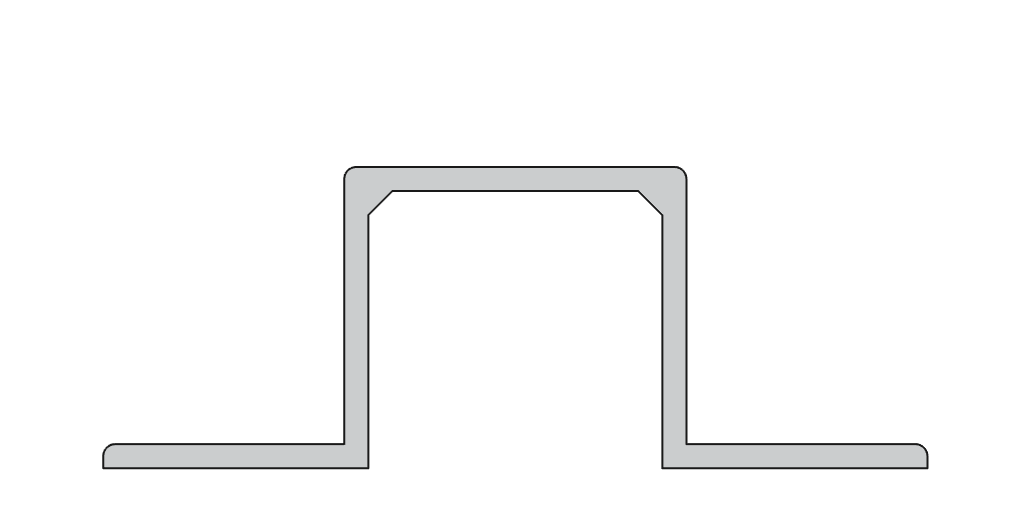

Add reinforcement material on the side

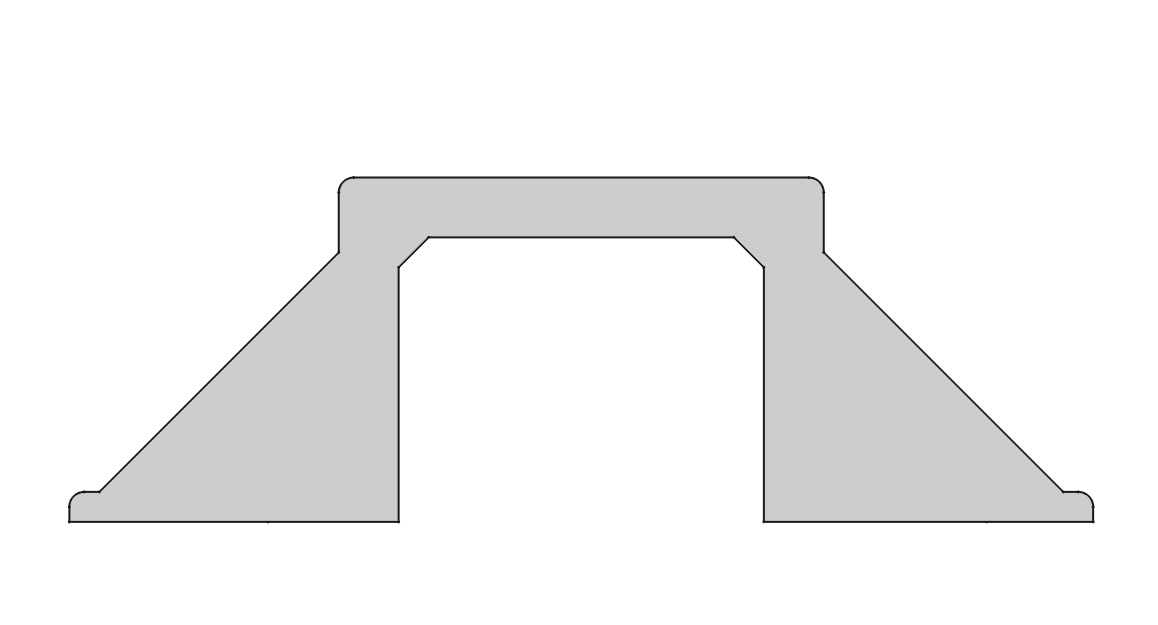

The reinforcement material is added on the side.
A pocket is created to pass through screws.

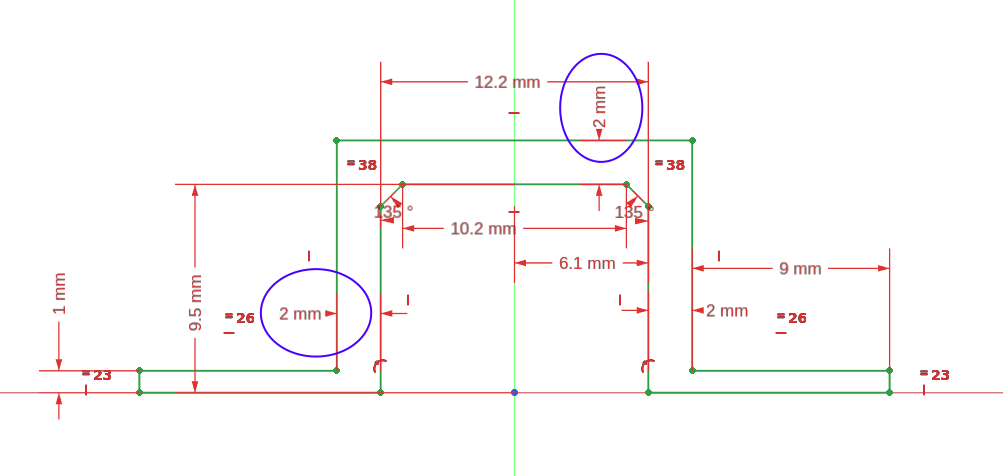

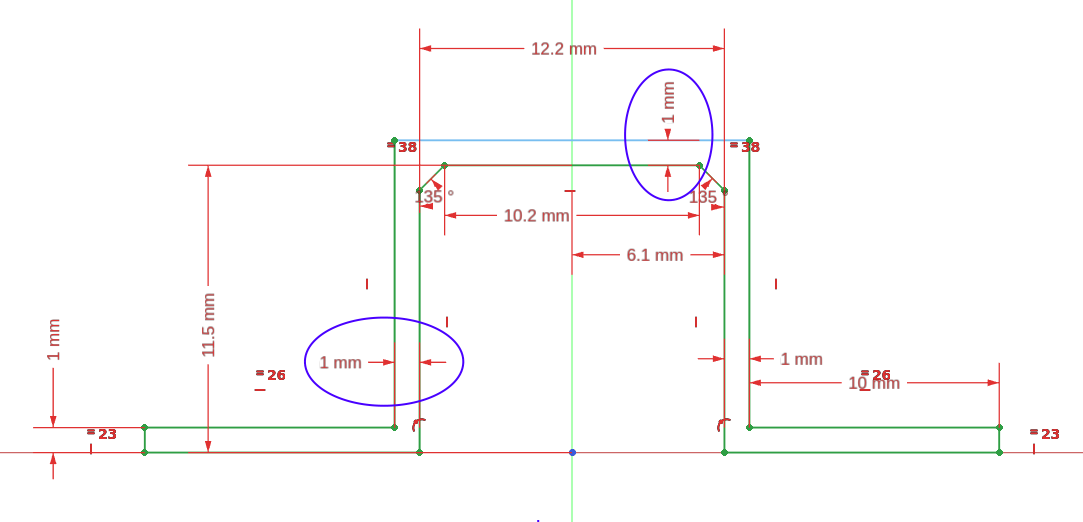

Thicken the motor bracket
The width of the motor bracket is thicken.

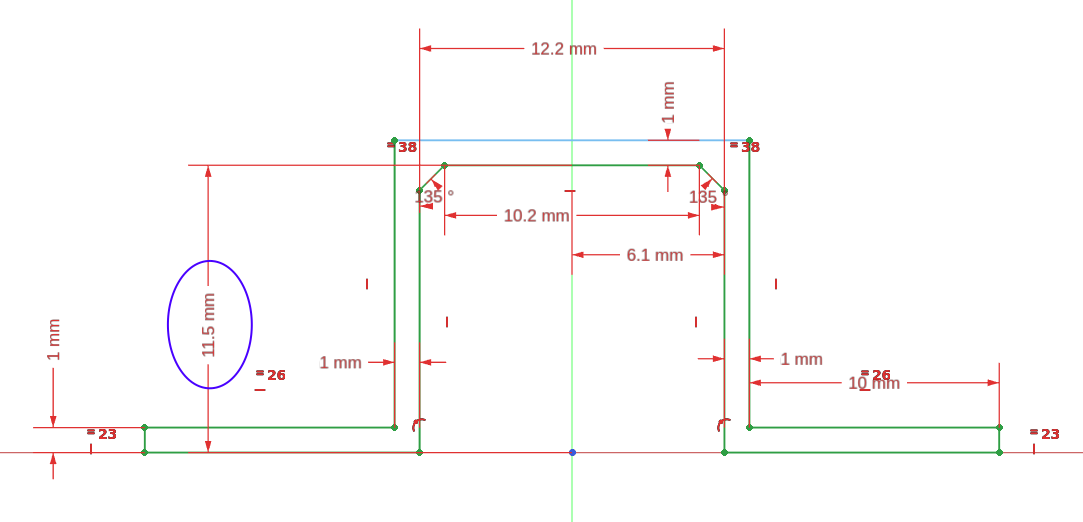

Lower the height of the bracket

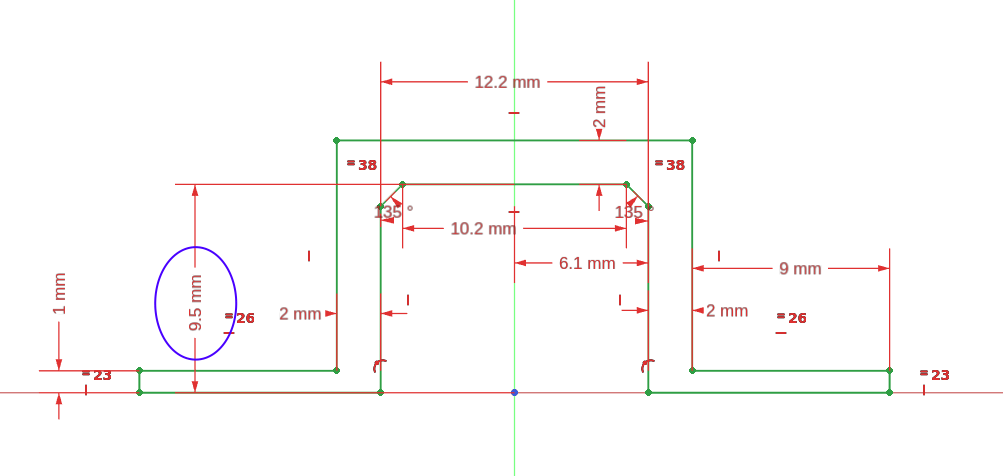

The height is lowered down.

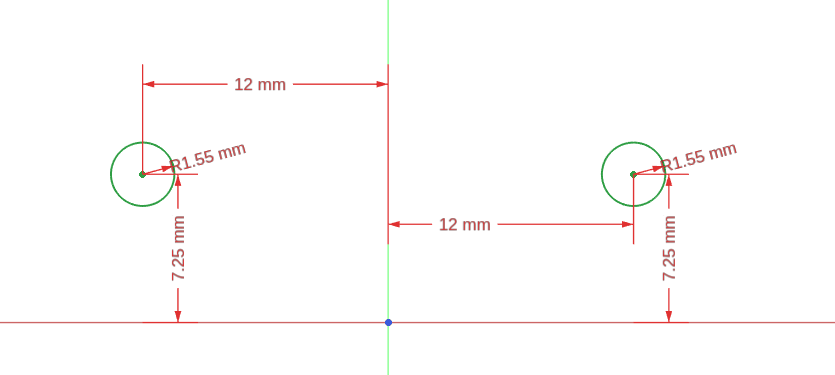

The hole should be as large as 3.2mm

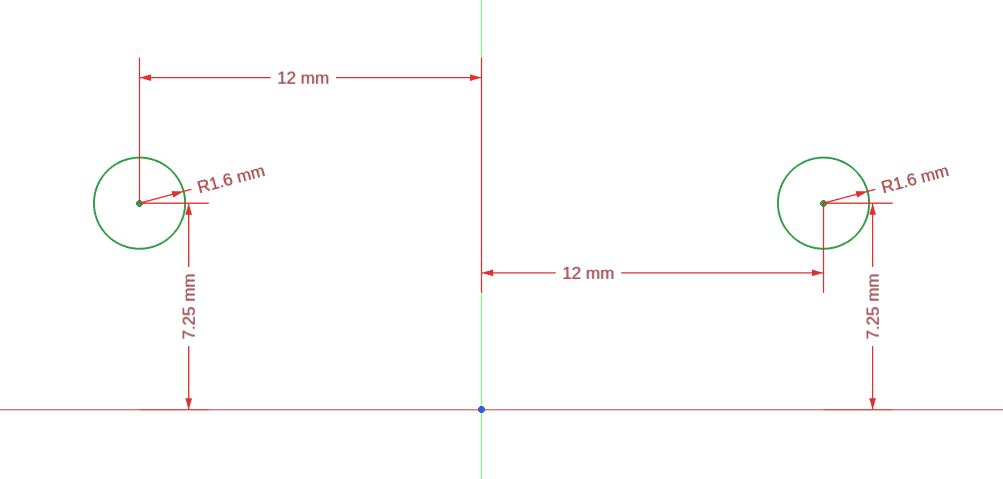

The radius changed from 1.55mm to 1.6mm.
Summary

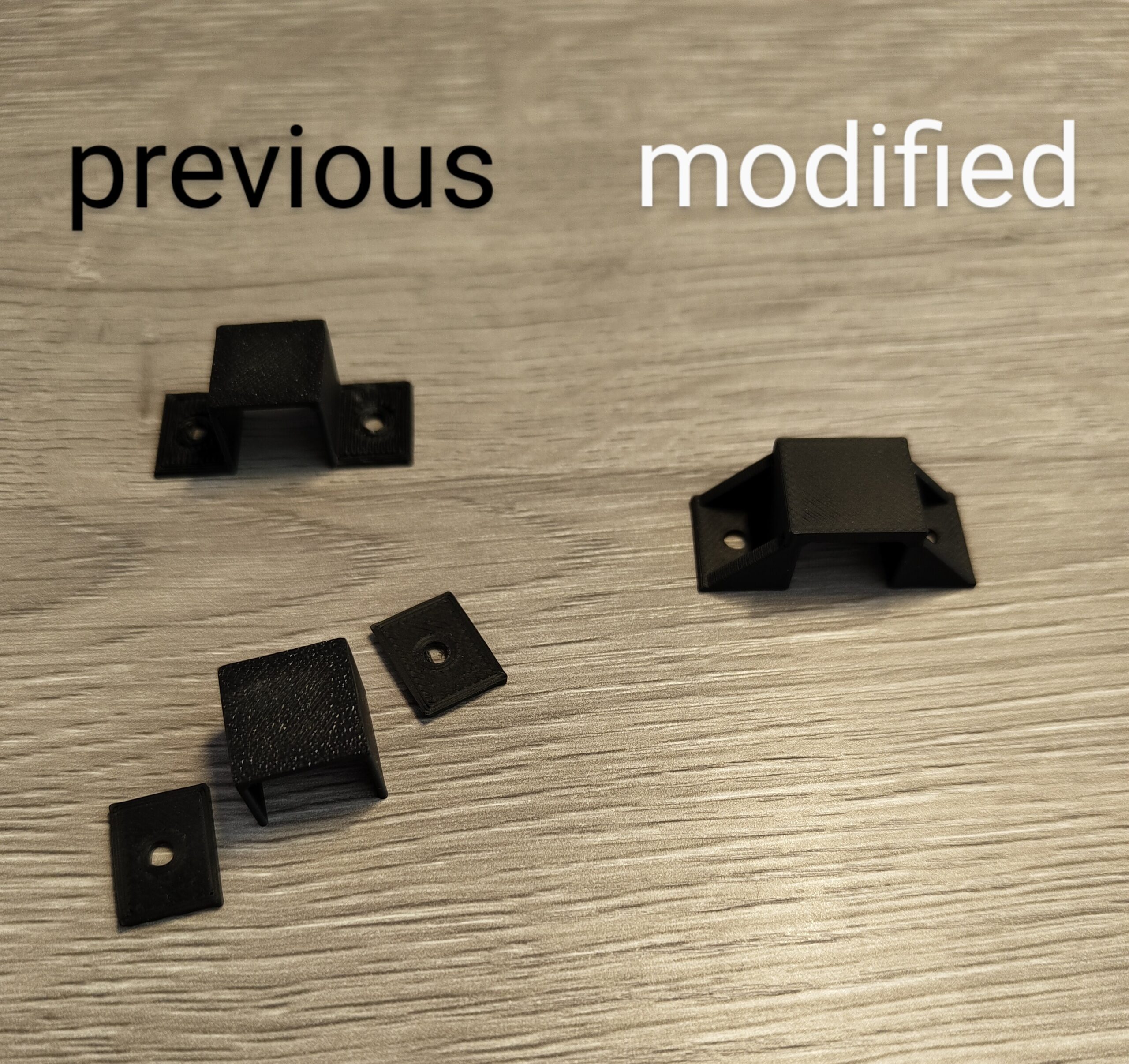

Slight changes have been made to strengthen the parts and align the requirements. The previous parts had been broken into pieces.
